DC voltage solar well pump
| MODEL | ERG30-1012 LV | ERG30-1024 LV | ERG30-1512 LV | ERG30-1524 LV | ERG30-2012 LV | ERG30-2024 LV | ERG30-3012 LV | ERG30-3024 LV | ERG30-3048 LV | ERG30-4024 LV | ERG30-4048 LV |
| Nominal Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 48VDC | 24VDC | 48VDC |
| INVERTER OUTPUT | |||||||||||
| Reted Power | 1.0KW | 1.5KW | 2KW | 3KW | 4KW | ||||||
| Surge Rating (20ms) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12KW | ||||||
| Capable Of Starting Electric Motor | 1HP | 2HP | |||||||||
| Waveform | Pure sine wave/ same as input (bypass mode) | ||||||||||
| Nominal Output Voltage RMS | 100V/110V/120VAC (±10% RMS) | ||||||||||
| Output Frequency | 50Hz/60Hz±0.3 Hz | ||||||||||
| Inverter Efficiency(Peak) | >88% | ||||||||||
| Line Mode Efficiency | >95% | ||||||||||
| Power Factor | 1.0 | ||||||||||
| Typical Transfer Time | 10ms(max) | ||||||||||
| AC INPUT | |||||||||||
| Voltage | 120VAC | ||||||||||
| Selectable Voltage Range | 80~135VAC(For Personal Computers) | ||||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40~80Hz | ||||||||||
| BATTERY | |||||||||||
| Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||
| Low Battery Alarm | 10.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||
| Low Battery Cut off | 10.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||
| High Voltage Alarm | 16.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||
| High Battery Voltage Recover | 15.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||

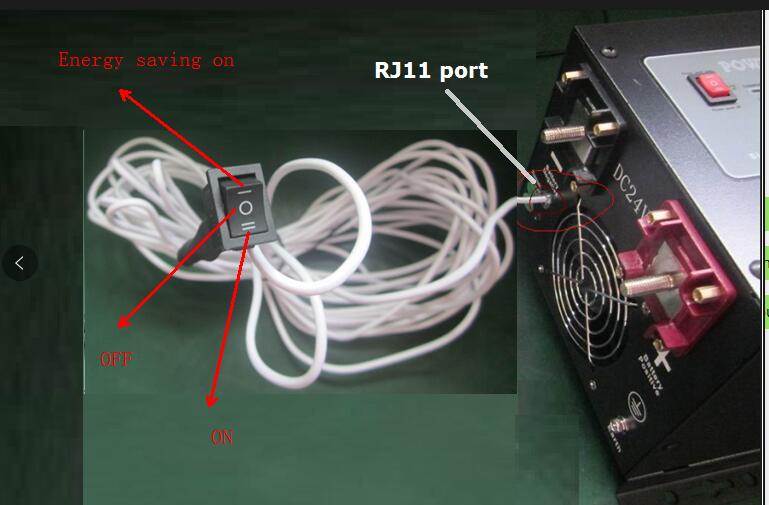

| Idle Consumption-Search Mode | <25W when power saver on | ||||||||||
| CHARGER | |||||||||||
| Output Voltage | Depends on battery type | ||||||||||
| Charger AC Input Breaker Rrating | 10A | 30A | 40A | ||||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) | ||||||||||
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 30A | 65A | 35A |
| BYPASS&PROTECTION | |||||||||||
| Input Voltage Waveform | Sine wave (grid or generator) | ||||||||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||||||
| Overload Protection (SMPS Load) | Circuit breaker | ||||||||||
| Output Short Circuit Protection | Circuit breaker | ||||||||||
| Bypass Breaker Rating | 10A | 30A | 40A | ||||||||
| Max Bypass Current | 30Amp | 40Amp | |||||||||
| MECHANICAL SPECIFICATIONS | |||||||||||
| Mounting | Wall Mount | ||||||||||
| Dimensions (W*H*D) | 426*206*178 mm | 601*206*178mm | |||||||||
| Net Weight (Solar CHG) kg | 16.5 | 17 | 21.1 | 20 | 26 | 24.5 | 24.8 | 38.2 | 35.8 | ||
| Shipping Dimensions(W*H*D) | 750*335*300mm | ||||||||||
| Shipping Weight (Solar CHG) kg | 19.3 | 20 | 24.1 | 22.8 | 29.1 | 27.5 | 27.5 | 42.3 | 40 | ||
| OTHER | |||||||||||
| Operation Temperature Range | 0°C to 40°C | ||||||||||
| Storage Temperature | -15°C to 60°C | ||||||||||
| Audible Noise | 60dB MAX | ||||||||||
| Display | LED+LCD | ||||||||||
| Standard Warranty | 1 year | ||||||||||
