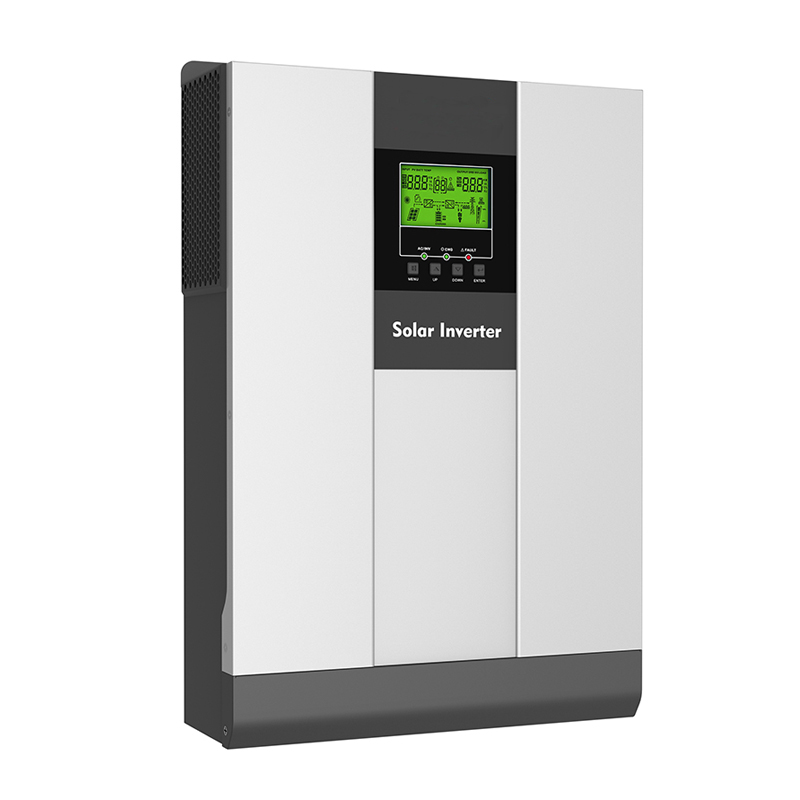

ERG-V18 High Frequency Off Grid Inverter 230VAC

ERG-V18 is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

contact now

- Features & Benefits

MODEL	ERG18-2024 VHM	ERG18-3024 VHM	ERG18-3048 VHM	ERG18-4048 VHM	ERG18-5048 VHM	ERG18-5548 VHM
Nominal Battery System Voltage	24VDC		48VDC
INVERTER OUTPUT
Rated Power	2000W	3000W	3000W	4000W	5000W	5500W
Surge Power	4000W	6000W	6000W	8000W	10000W	11000W
Waveform	Pure sine wave
AC Voltage Regulation (Batt.Mode)	(220VAC ~ 240VAC)±5%
Inverter Efficiency (Peak)	93%
Transfer Time	10ms（For Personal Computers）20ms（For Home Appliance）
AC INPUT
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances); 184~253VAC(VDE4105)
Frequency Range	50Hz/60Hz (Auto sensing)
BATTERY
Normal voltage	24VDC		48VDC
Floating Charge Voltage	27VDC		54VDC
Overcharge Protection	31VDC		60VDC
SOLAR CHARGER&AC CHARGER
Maximum PV Array Open Circuit Voltage	145VDC
PV Array MPPT Voltage	30~130VDC		64~130VDC
Standby Power Consumption	2W
PV Input Power	1440W/1920W		2880W/3840W
Maximum Solar Charge Current	60/80A
Maximum Effciency	98%
Maximum AC Charge Current	20/30A		60A
Maximum Charge Current	80A		120/140A
MECHANICAL SPECIFICATION
Machine Dimensions (WHD)(mm)	272355100		297.5468125
Package Dimensions (WHD)(mm)	540395241		638395241
Net Weight(kg)	10	11	13.3
Gross Weight(kg)	11.7	12	16.4
OTHER
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	0°C -55°C
Storage Temperature	-15°C -60°C
