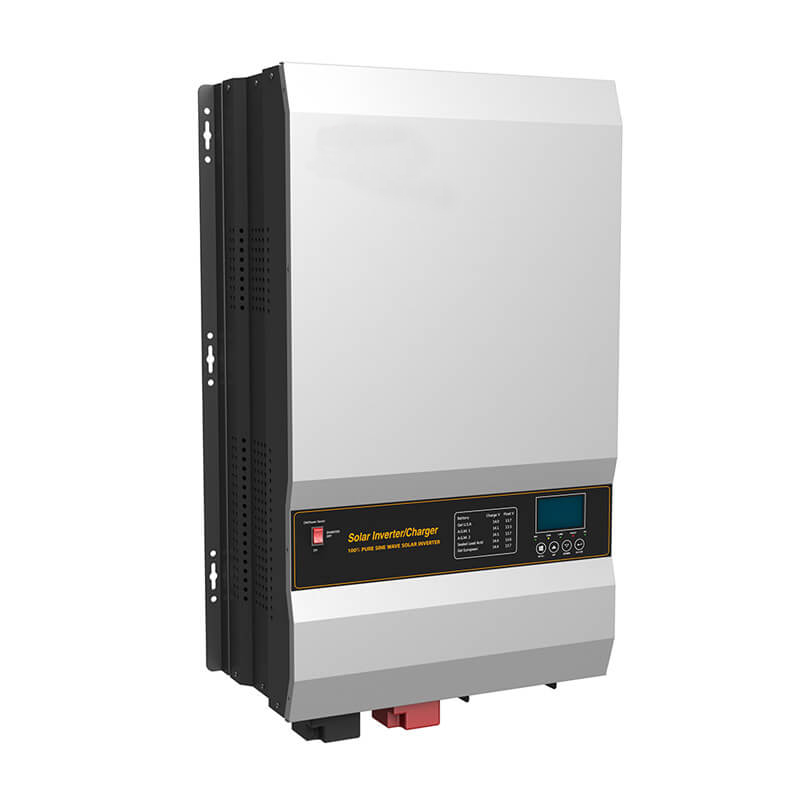

DC voltage solar well pump
| MODEL | ERG35 - 4K | PV35 - 5K | ERG35 - 6K | ERG35 - 8K | ERG35 - 10K | ERG35 - 12K | ||
|---|---|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24V | 48V | 24V | 48V | 48V | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | ||||||||
| Rated power | 4KW | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | ||
| Surge rating(20ms) | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | ||
| Capable of starting electric motor | 2HP | 2HP | 3HP | 4HP | 5HP | 6HP | ||
| Waveform | Pure sine wave / same as input (bypass mode) | |||||||
| Nominal output voltage RMS | 220V / 230V / 240VAC (+/-10%RMS) | |||||||
| Output frequency | 50Hz / 60Hz +/- 0.3Hz | |||||||
| Inverter effciency(peak) | >85% | >88% | ||||||
| Line mode efficiency | >95% | |||||||
| Power factor | 1.0 | |||||||
| Typical transfer time | 20ms(max) | |||||||
| AC INPUT | ||||||||
| Voltage | 230VAC | |||||||
| Selectable voltage range | 90-280 VAC (APL) | |||||||
| Frequency range | 50Hz / 60Hz | |||||||
| BATTERY | ||||||||
| Low battery voltage cutoff | 20-24VDC for 24VDC mode (40-48VDC for 48VDC mode) | |||||||
| Low battery voltage recover | 21-25VDC for 24VDC mode (42-50VDC for 48VDC mode) | |||||||
| High battery voltage cutoff | 30VDC for 24VDC mode (60VDC for 48VDC mode) | |||||||
| High battery voltage recover | 28.5VDC for 24VDC mode (57VDC for 48VDC mode) | |||||||
| Idle consumption-search mode | <30W when power saver on | <60W when power saver on | ||||||
| AC CHARGER | ||||||||
| Output voltage | Depends on battery type | |||||||
| Charger AC input breaker rating | 40A | 40A | 50A | 80A | 80A | 80A | ||
| Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||
| Maximum charge current | 80A | 60A | 100A | 70A | 80A | 100A | 120A | 140A |
| BTS | ||||||||
| Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | |||||||
| BYPASS PROTECTION | ||||||||
| Input voltage waveform | Sine wave (grid or generator) | |||||||
| Nominal input frequency | 50Hz or 60Hz | |||||||
| Overload protection (SMPS Load) | Circuit breaker | |||||||
| Output short circuit protection | Circuit breaker | |||||||
| Bypass breaker rating | 40A | 63A | 63A | 63A | ||||
| Max bypass current | 40Amp | 80Amp | ||||||
| SOLAR CHARGER | ||||||||
| Maximum PV charge current | 80A | 100A(200A optional) | ||||||
| DC voltage | 24V/48V Auto work | 48V | ||||||
| Maximim PV array power | 2000W | 4000W | 2000W | 4000W | 4000W | 5000W(10000W for 200A optional) | ||
| MPPT range @ operating voltage(VDC) | 32-145VDC for 24V mode,64-147V for 48V mode | 64~147VDC | ||||||
| Maximum PV array open circuit voltage | 147VDC | |||||||
| Maximum effciency | >98% | |||||||
| Standby power consumption | <2W | |||||||
| MECHANICAL SPECIFICATIONS | ||||||||
| Mounting | Wall mount | |||||||
| Dimensions (W*H*D) | 620*385*215mm | 670*410*215mm | ||||||
| Net weight (solar CHG) (kg) | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | ||
| Shipping dimensions (W*H*D) | 755*515*455mm | 884*618*443mm | ||||||
| Shipping weight (Solar CHG) (kg) | 56 | 61 | 64 | 82.5+2.5 | 89+2.5 | 92+2.5 | ||
| OTHER | ||||||||
| Operation temperature range | 0°C to 40°C | |||||||
| Storage temperature | -15°C to 60°C | |||||||
| Audible noise | 60dB MAX | |||||||
| Display | LED+LCD | |||||||
| Loading (20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | |||||||
