Pressurized Tubes Solar Water Heater

Pressurized Tubes Solar Water Heater

Key Specification:

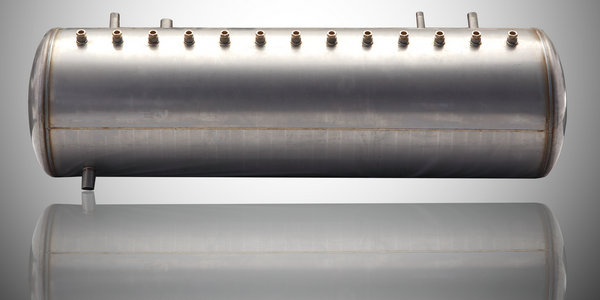

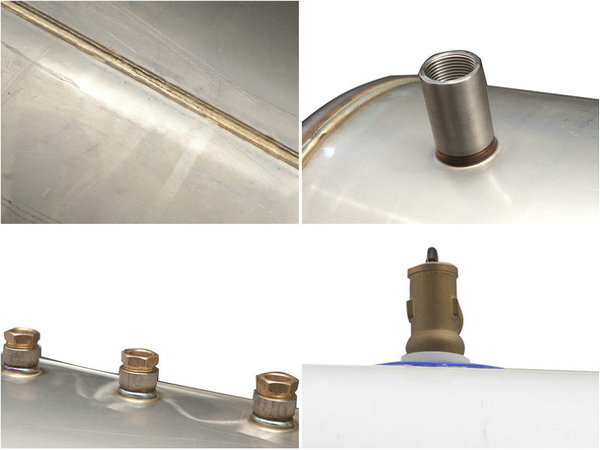

1)Inner tank: SUS 304-2B stainlesssteel, thickness: 1.2mm

2) Outer tank: Galvanized steel,thickness: 0.40mm

3)Frame: Galvanized with electrostaticplastic coating, thickness: 1.5mm

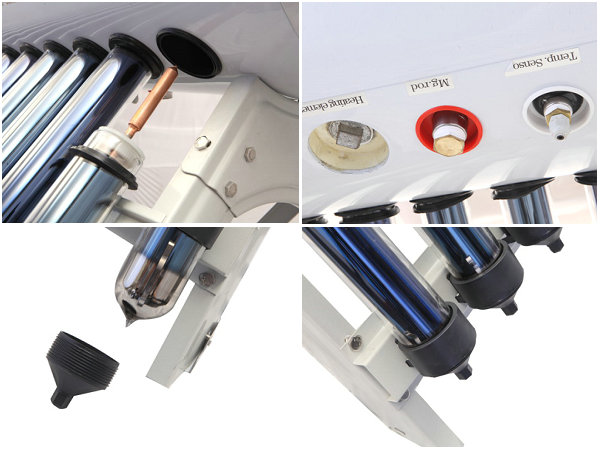

4) Vacuun tube: AL-SS/CU-58/1800mm

Notes: Solar heat storage tank diameter(mm):365/480

Thickness: insulated(mm):55

Vent connection(inch):3/4

Electric heater connection(inch):1.25

Water connection(inch):3/4

Collector angle(degree):20/45

Test pressure(pa):0.9MPa

Operating fluid ppressure(pa):0.6MPa

Distance from tube to tube:80

Working Principle:

This model uses the all-glass evacuatedsolar collector tubes as the heat-absorbing element. The high vacuum degree of theclearance between the outer and the inner tube reduces the heat emission whichis caused by convection and conduction the layer films of the all glassevacuated tubes transfer the sun energy into heat energy the high absorptionand low emittance rate of Rongchang’s layer films is unique, depending on thedifferent density between hot water and cold water, a water flowing cycle iscreated in the tube, hot water flows automatically upwards while the cold waterflows downward and the water in the storage tank will be heated from thisnatural circulation.
