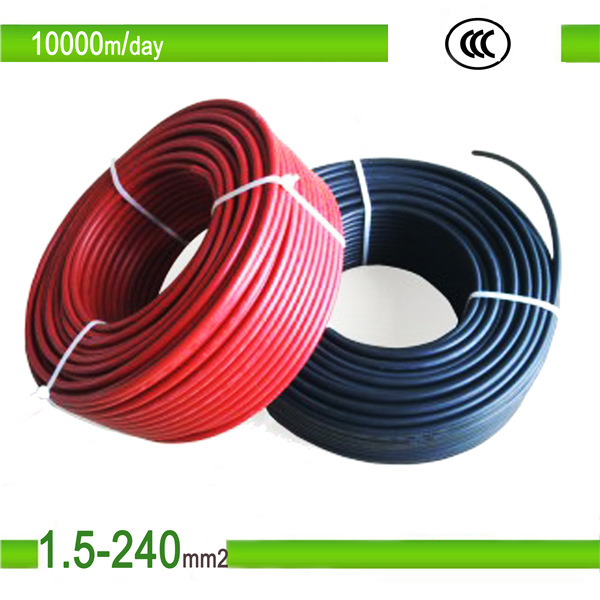

PV1-F Solar Cable (Photovoltaic)

PV1-F SOLAR CABLE

Application:

Double insulation, electron-beam cross-linked cables for photovoltaic power station.

Construction of our high quality solar cables:

1) Core Conductor: Tinned annealed copper (stranded core)

2) Popular sizes: 1 core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm²

3) Cable conductor: stranded tinned annealed copper

4) Insulation: electron-beam cross-linked Polyolefin(XLPE)

5) Jacket: XLPE (black, red)

Other product feautures:

A.Temperature rating: -40C up to +120C

B. Fire performance: IEC 60332-1, UL1581 VW-1

C. High resistance against hear, cold, abrasion, UV, Ozone and hydrolyzes. Halogen free, flame retardant

D. Voltage suitable: 600-1000V

Technical data of PV1-F Solar PV Cable available, contact us for more details and additional support: sales-solar@rongchang-group.com
