PV MC4 Connector - Type: Male/Female Waterproof

MC4 Cable Connector Male+Female Wire Solar Panel Cable Connector

TUV Approved IP67 Solar Panel DC Solar PV MC4 Connector

Specification:

MC4 compatible

Rated Voltage: TUV 1000v DC/UL 600VDC

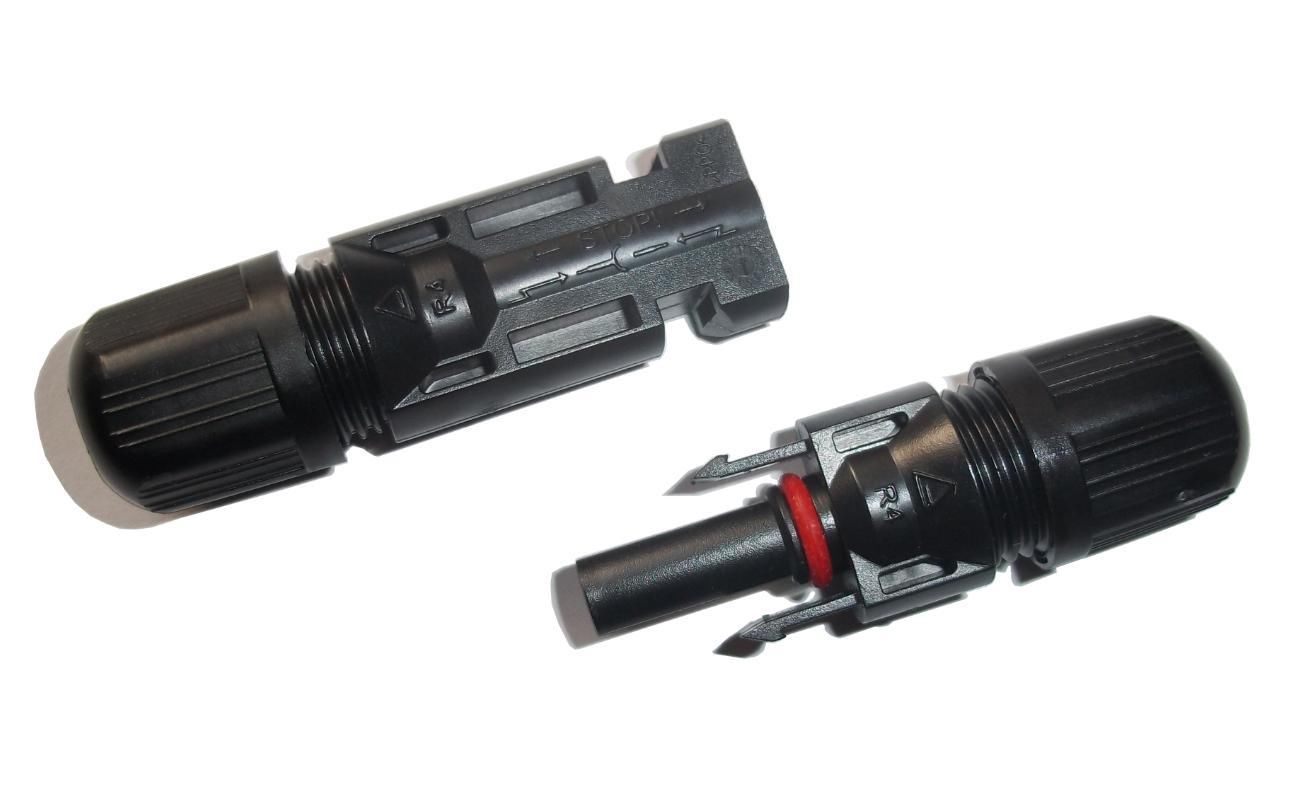

Type: Male/Female

Rating Current: 20A~30A

Suitable for: 2.5mm2, 4mm2,6mm2 (AWG14, AWG12, AWG10)

Contact resistance:≤0.2mmΩ

Pollution degree: 2

Temperature Range: - 40 C~+85 C

Flame class: UL94-V0

Waterproof  Class : IP67

Insertion force:≤50N

Withdrawal force:≥50N

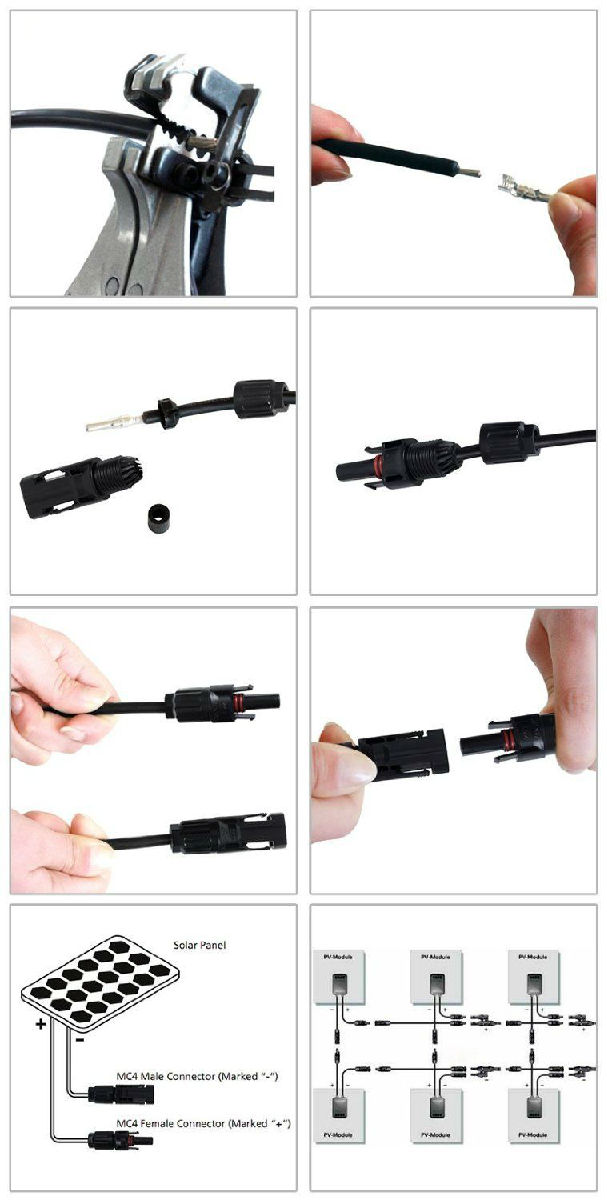

Quick & simple assembly processing andsimple removal of plugs

Compatible with PV cables with different insulation diameters

Double seal ring, better waterproof

Connection with cable by the crimping tool

Contact material: copper, tin plated

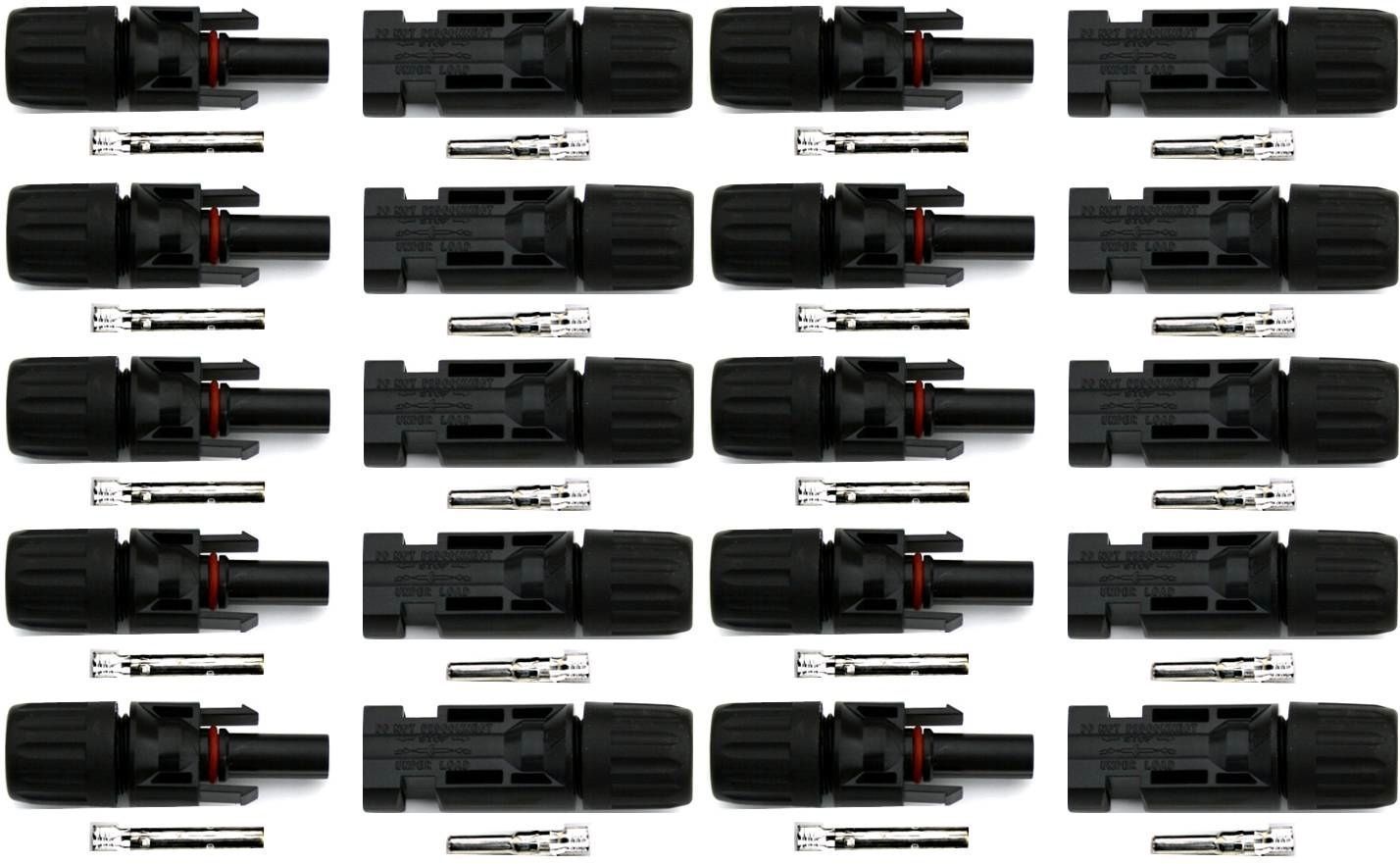

Package include:

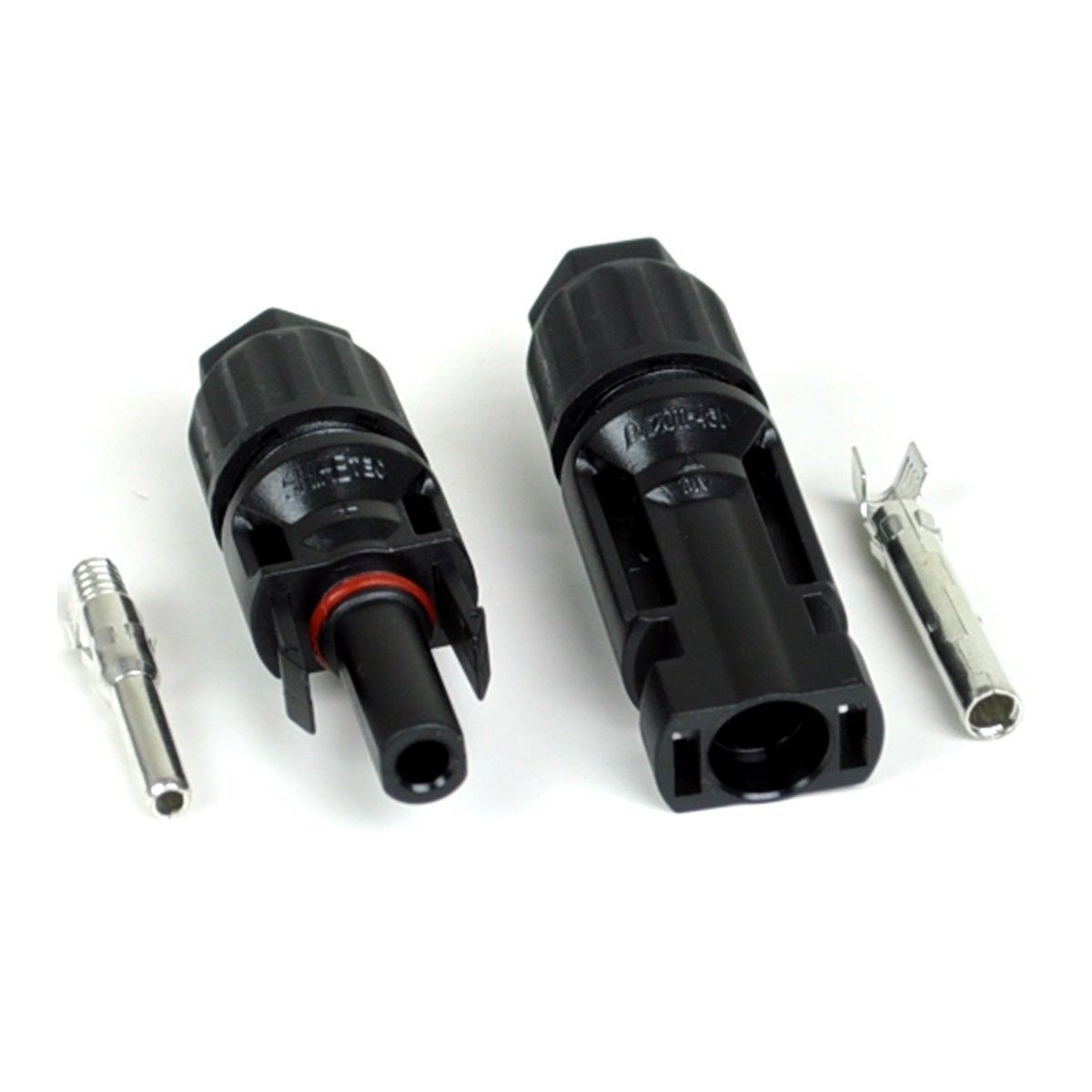

Male solar panel cable connector

Female solar panel cable connector
