Y Type MC4 Solar Panel Cable Connectors 2 - 1

These are Rongchang Solar MC4 Style Branch Connector Cables whichare approved by CE, TUV, UL etc.

This Y Style MC4 compatible Solar Cable Connector Set is a perfectsolution to parallel connect multiple panels together in a solar field, and istypically used in parallel applications.

Features:

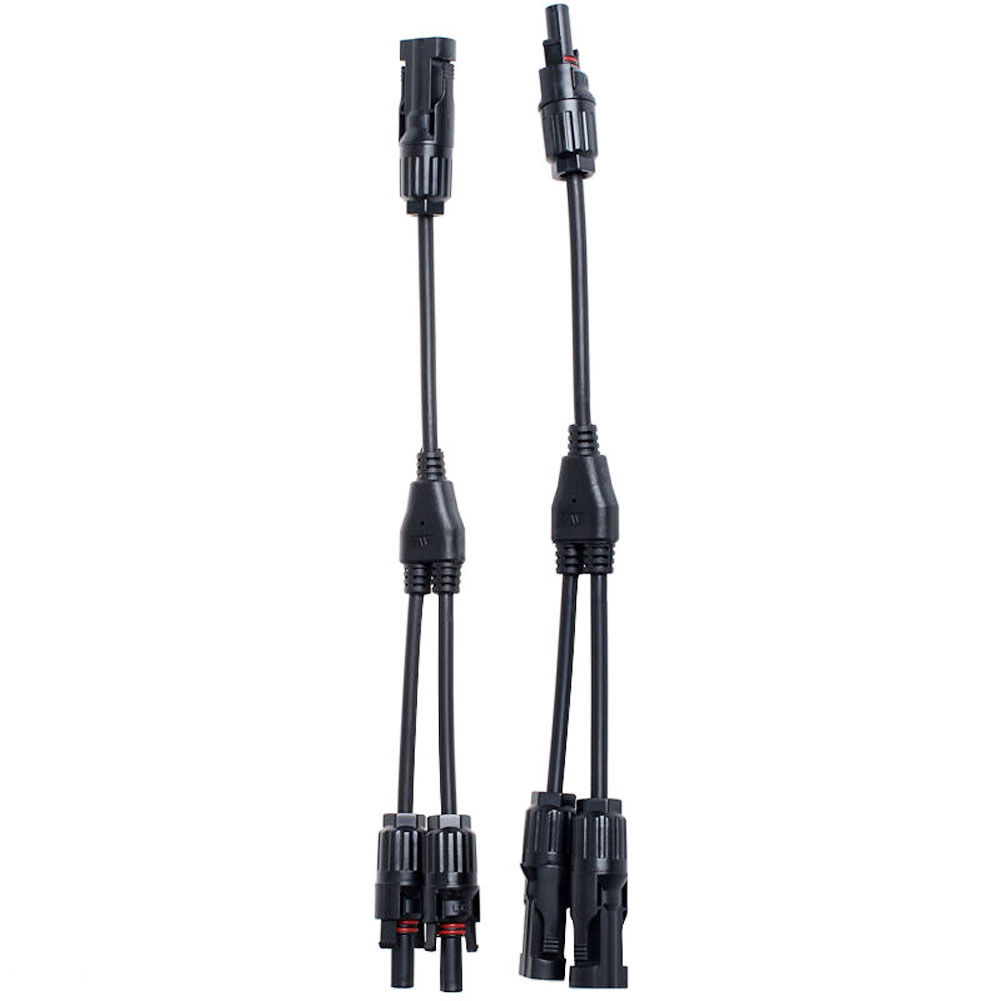

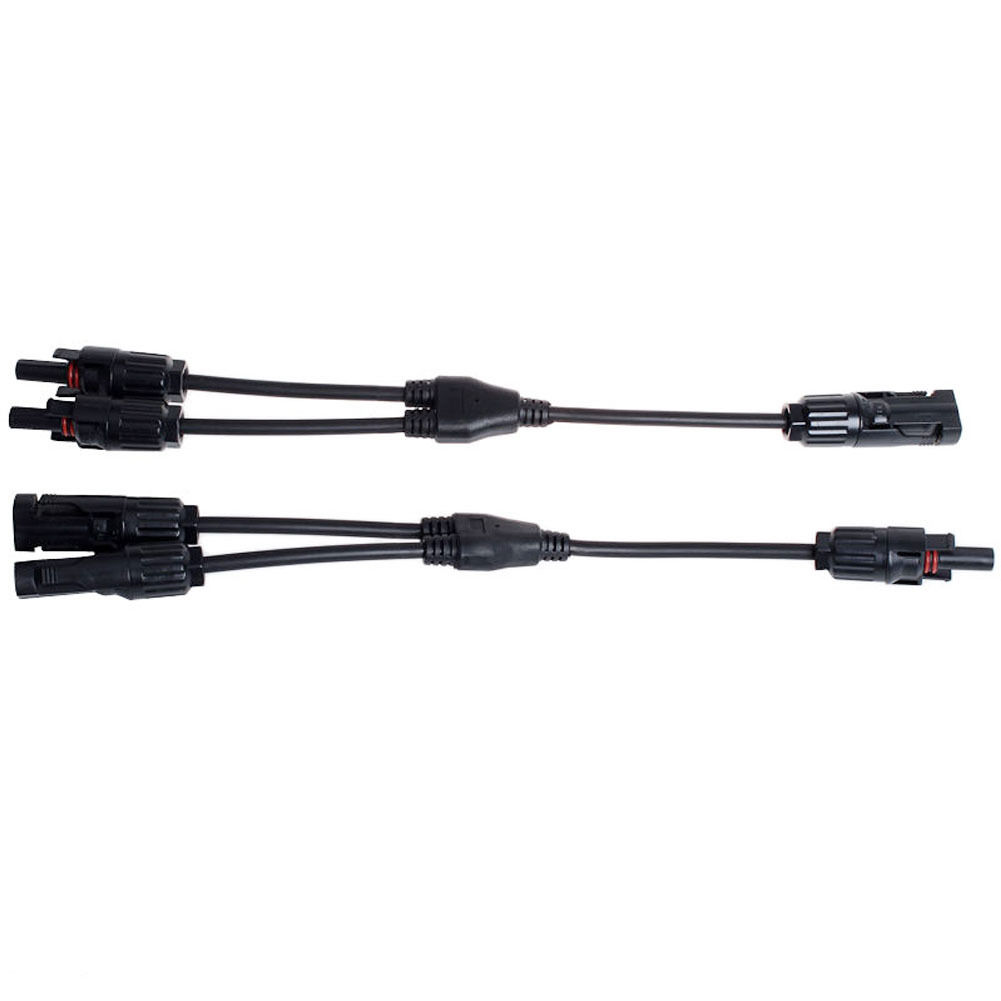

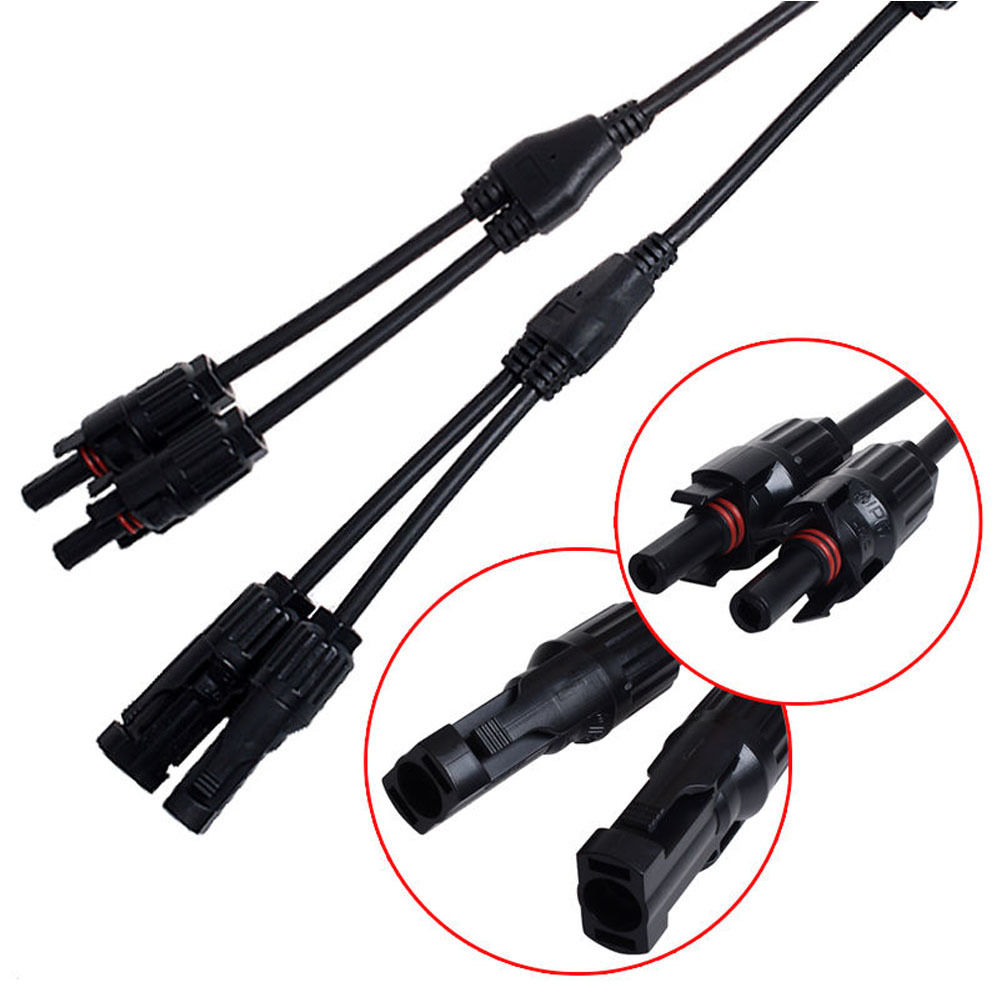

1 Pair of Y Type MC4 Solar Panel Cable Connectors：one female to double male (F/M/M)  and one male todouble female (M/F/F)

It can be used in harsh environment

Compatible MC4

Double seal rings for better waterproof effect

Compatible with PV cables with different insulation diameters

It can be used in harsh environment

With excellent aging resistance and UV endurance

Created seal, design of dust proof

Load capability with big current and high voltage

Quick & simple assembly processing and simple removal ofplugs without the aid of any extra instrument

Strong pulling force capability

Resistance of extra high & low temperature and fireproof

Lower contact resistance

Specification:

Cable specification: 4mm2(AWG12)

Rated Current: 30A

Rated voltage: 1000VDC

Contact resistance: ≤0.2mmΩ

Waterproof degree：IP67

Flame class: UL94-VO

Safety Class: Ⅱ

Withdrawal force: ≥50N

Insertion force: ≤50N

Insulation material:  PPO + PA

Connecting system: crimping connection

Temperature range:  -40 ℃ ~ +90 ℃

Cable length: 775px

Package Includes

1 Pair of Y Type MC4 Solar Panel cable Connectors (one Male & one female)
