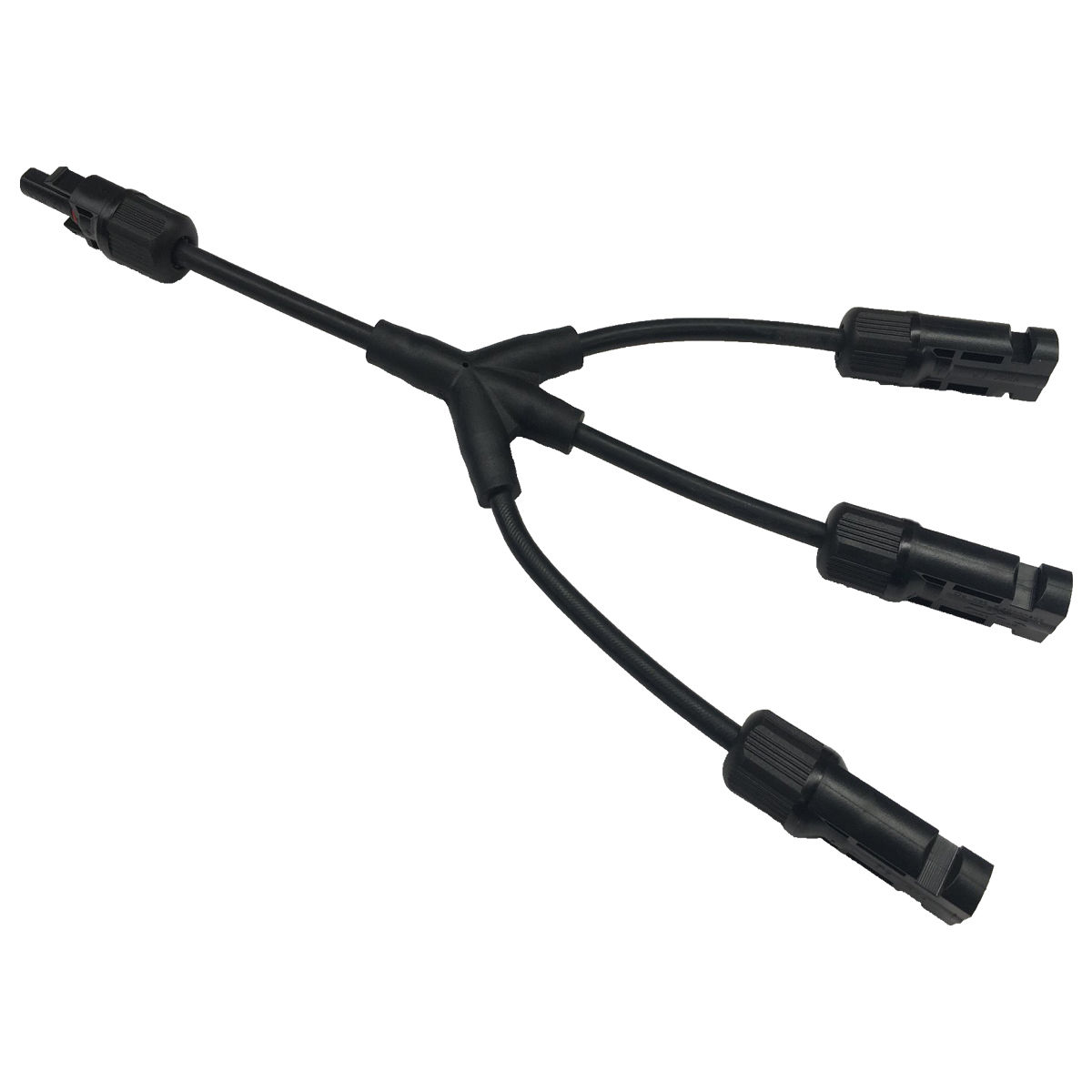

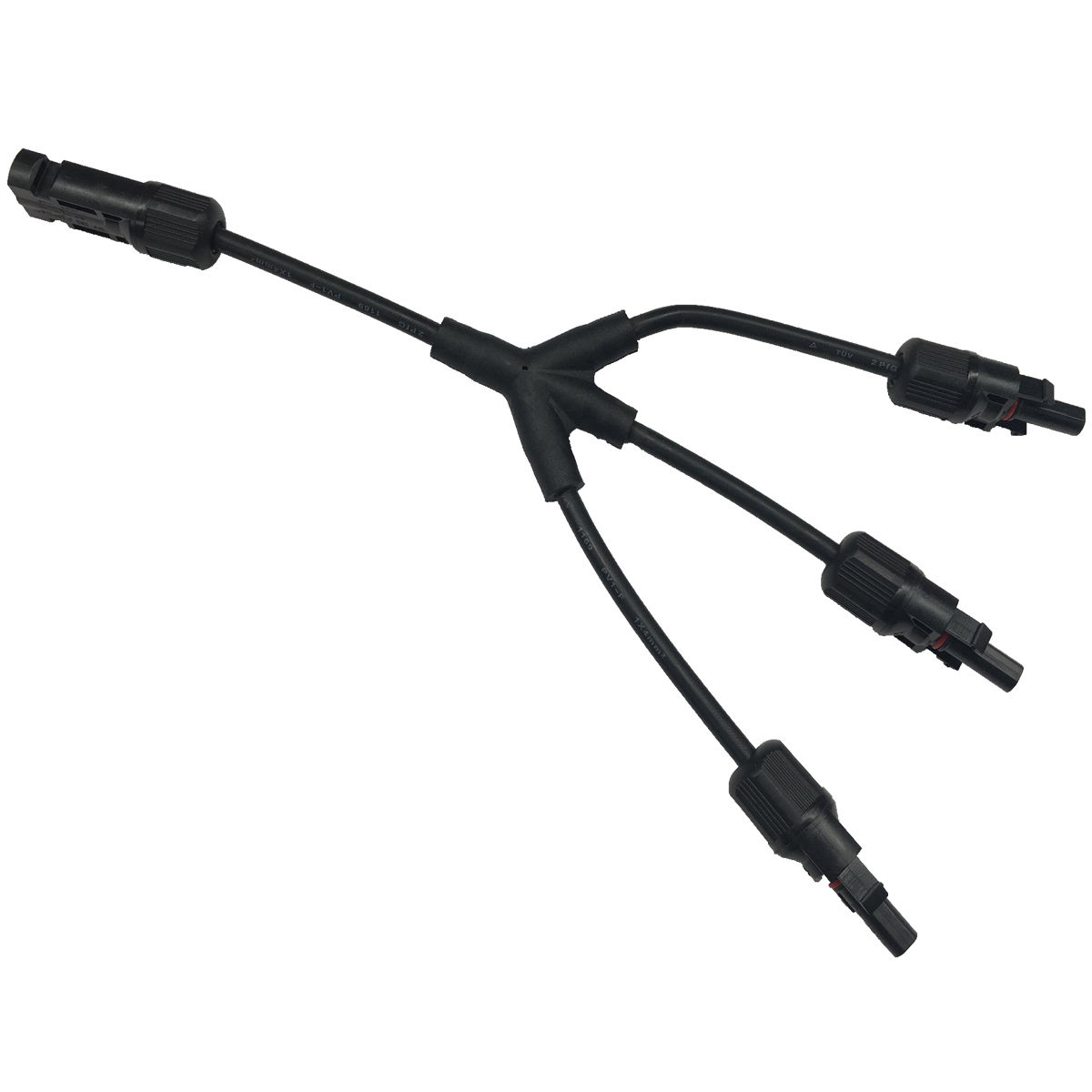

Y Type MC4 Solar Panel Cable Connectors 3 - 1

These are Rongchang Solar MC4 Style Branch Connector Cables whichare approved by CE, TUV, UL etc.

This Y Style MC4 compatible Solar Cable Connector Set is suitablefor different sizes of PVC cable, waterproof IP 67, housing made of PPOMaterial, anti – UV, high

Current capacity and contact material copper tin plated!

Features:

MC4 Y Type 3 to 1 Connector for PV Use

It can be used in harsh environment

Compatible MC4

Double seal rings for better waterproof effect

Compatible with PV cables with different insulation diameters

It can be used in harsh environment

With excellent aging resistance and UV endurance

Created seal, design of dust proof

Load capability with big current and high voltage

Quick & simple assembly processing and simple removal of plugswithout the aid of any extra instrument

Strong pulling force capability

Resistance of extra high & low temperature and fireproof

Lower contact resistance

Specification:
Rated Current: 40A  (2-6mm²)

Rated Voltage:1000V DC

Test Voltage:6000V (50H - 1min)

Overvoltagetype/pollution degree: CAT Ⅲ

Contact resistanceof plug connector: 1.0mΩ

Contact material:Copper, silver-plated

Insulationmaterial: PPO

Degree ofprotection: IP2*/IP65

Flameclass: UL94-V0

Safety class: Ⅱ

Insertionforce/withdrawal force: ≤50N/≥50N

Temperature Range: -40℃ ~ +110℃

Package Includes

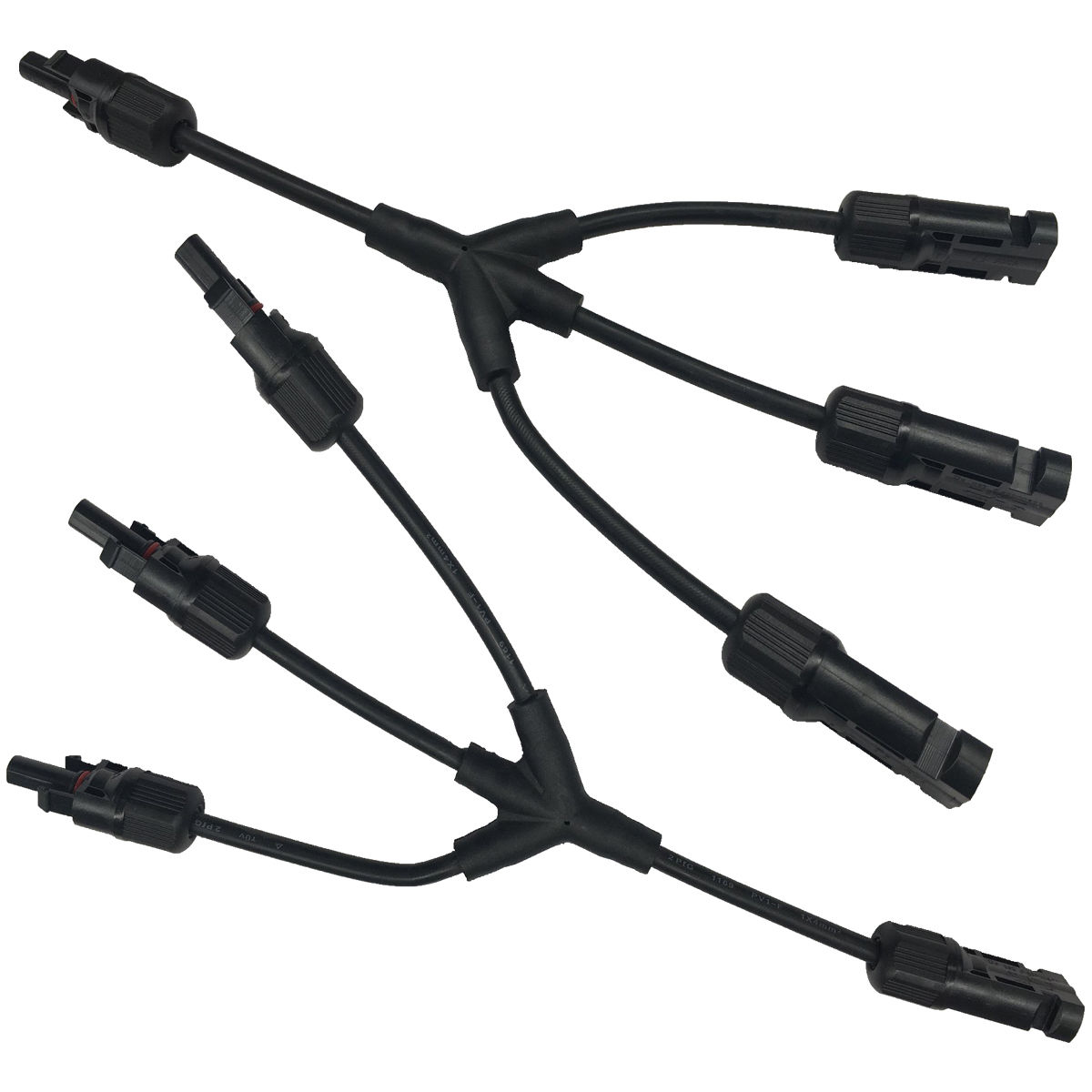

1 Pair of MC4 Y Type 3 to 1 Connector for PV Use
